Basic Info

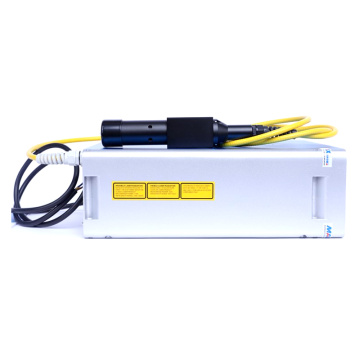

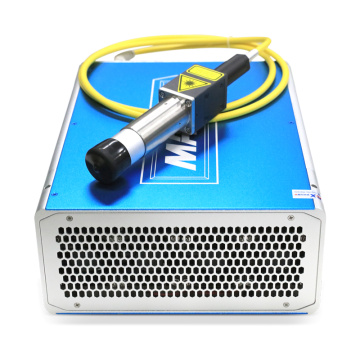

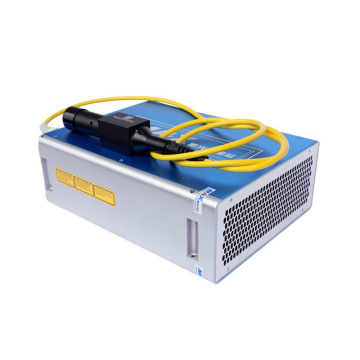

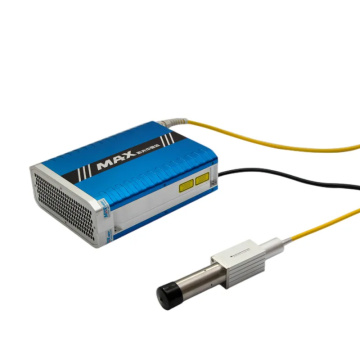

Model No.: MFP-30W/50W Q-Switch Chuangxin laser
Brand: Zixu
Origin: China
Additional Info
Transportation: Ocean,Express
Place of Origin: China
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: Express Delivery,FOB,CFR,CIF,DAF,DES,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU
Product Description
| Model | MFP-30W | MFP-50W |
| Nominal Power (W) | ≥ 30 | ≥ 50 |
| Mode of Operation | Pulsed | Pulsed |
| Wavelength (nm) | 1064 ± 5 nm | 1064 ± 5 nm |
| Beam Quality BBP (㎡) | ≤ 1.5 | ≤ 1.5 |
| Repetition Frequency Range (kHz) | 30 ~ 60 | 33 ~ 80 |
| Output Power Stability | ≤ 5% | ≤ 5% |
| Pulse Width (ns) | 100 ± 10 | 100 ± 10 |
| Maximum Energy per Pulse (mJ) | 1.2 | 1.5 |
| Beam Diameter (mm) | 7.5 | 7.5 |
| Input Power | 24VDC | 24VDC |
| Power Adjustment Range (%) | 10 ~ 100 | 10 ~ 100 |
| Fiber Cable Length (m) | 2.5 | 2.5 |
| Cooling Method | Air cooled | Air cooled |
| Dimensions (mm) | 355×266×120 | 355×266×120 |
| Weight (kg) | 10 | 10 |
